SOAP: Simple Object Access Protocol

Why This Matters

In 2024, you might think SOAP is dead. REST dominates public APIs, GraphQL powers modern apps, and gRPC handles microservices. So why learn SOAP?

Because SOAP still powers critical infrastructure:

Banking systems: 70% of financial transactions worldwide
Healthcare: HIPAA-compliant patient record exchanges
Government: IRS, Social Security, DMV systems
Enterprise ERP: SAP, Oracle, Salesforce integrations
Airline reservations: Global Distribution Systems (GDS)

When you see "SOAP" in a job description, it means working with mission-critical legacy systems that process billions of dollars daily. These systems won't be rewritten—they'll outlive REST and GraphQL.

By the end of this deep-dive, you'll understand:

Why SOAP uses XML instead of JSON (spoiler: it's not just verbosity)
How WS-Security provides enterprise-grade encryption and signatures
When SOAP beats REST (yes, really!)
How to integrate with legacy SOAP services from modern Go applications

Real-world impact: A single SOAP API misconfiguration at a major bank can expose millions of customer records or cause multi-million dollar transaction failures. Understanding SOAP isn't optional for enterprise developers—it's essential.

What SOAP Solves

Enterprise Requirements That REST Doesn't Address

1. Built-In Security Standards

REST relies on external standards (OAuth, JWT):

http
# REST: Security bolted on
Authorization: Bearer <token>
# No standard for message encryption, signing, or token format

SOAP has WS-Security built into the protocol:

xml
<!-- SOAP: Security is part of the message -->
<soap:Envelope>
  <soap:Header>
    <wsse:Security>
      <wsse:UsernameToken>
        <wsse:Username>user</wsse:Username>
        <wsse:Password Type="PasswordDigest">...</wsse:Password>
      </wsse:UsernameToken>
      <ds:Signature><!-- XML Digital Signature --></ds:Signature>
      <xenc:EncryptedData><!-- Encrypted payload --></xenc:EncryptedData>
    </wsse:Security>
  </soap:Header>
  <soap:Body>...</soap:Body>
</soap:Envelope>

2. ACID Transactions Across Services

REST has no standard for distributed transactions:

Service A: Update account balance
Service B: Record transaction
# If Service B fails, how do you rollback Service A?

SOAP has WS-AtomicTransaction:

xml
<soap:Header>
  <wsat:CoordinationContext>
    <wsu:Identifier>txn-123</wsu:Identifier>
    <wsat:CoordinationType>WSAT11:2PC</wsat:CoordinationType>
  </wsat:CoordinationContext>
</soap:Header>
<!-- Two-phase commit across multiple services -->

3. Formal Contract (WSDL)

REST: No standard contract format

# Developer reads docs, hopes they're up-to-date
GET /api/users/{id}
# What fields does it return?
# What's the exact format?

SOAP: Machine-readable contract (WSDL)

xml
<wsdl:definitions>
  <wsdl:types>
    <xsd:schema>
      <xsd:element name="GetUserRequest">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="userId" type="xsd:int"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:schema>
  </wsdl:types>
</wsdl:definitions>
<!-- Auto-generate client code in any language -->

4. Reliable Messaging

REST: No standard for guaranteed delivery

POST /api/payment
# Did it succeed? Network timed out
# If I retry, will I double-charge?

SOAP with WS-ReliableMessaging:

xml
<wsrm:Sequence>
  <wsrm:Identifier>seq-123</wsrm:Identifier>
  <wsrm:MessageNumber>5</wsrm:MessageNumber>
</wsrm:Sequence>
<!-- Guaranteed exactly-once delivery, message ordering -->

Real-World Scenarios Where SOAP Excels

Banking Transactions: ACID guarantees, security, audit trails
Healthcare Systems: HIPAA compliance, patient data encryption
Government Services: Legal compliance, formal contracts
Legacy Integration: SAP, Oracle, IBM systems
High-Security Environments: Defense, finance, critical infrastructure

How SOAP Works

SOAP is a protocol (unlike REST, which is an architectural style). It defines:

Message structure (XML envelope)
Communication patterns (request/response, one-way, async)
Extension standards (WS-Security, WS-Transactions, etc.)

SOAP Message Structure

xml
<?xml version="1.0"?>
<soap:Envelope
    xmlns:soap="http://www.w3.org/2003/05/soap-envelope"
    xmlns:example="http://example.com/services">

  <!-- Optional: Metadata, security, routing -->
  <soap:Header>
    <example:Authentication>
      <example:Username>admin</example:Username>
      <example:Password>secret</example:Password>
    </example:Authentication>
  </soap:Header>

  <!-- Required: Actual data -->
  <soap:Body>
    <example:GetUserRequest>
      <example:UserId>123</example:UserId>
    </example:GetUserRequest>
  </soap:Body>

</soap:Envelope>

Response:

xml
<?xml version="1.0"?>
<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope">
  <soap:Body>
    <GetUserResponse>
      <User>
        <Id>123</Id>
        <Name>Alice Smith</Name>
        <Email>alice@example.com</Email>
      </User>
    </GetUserResponse>
  </soap:Body>
</soap:Envelope>

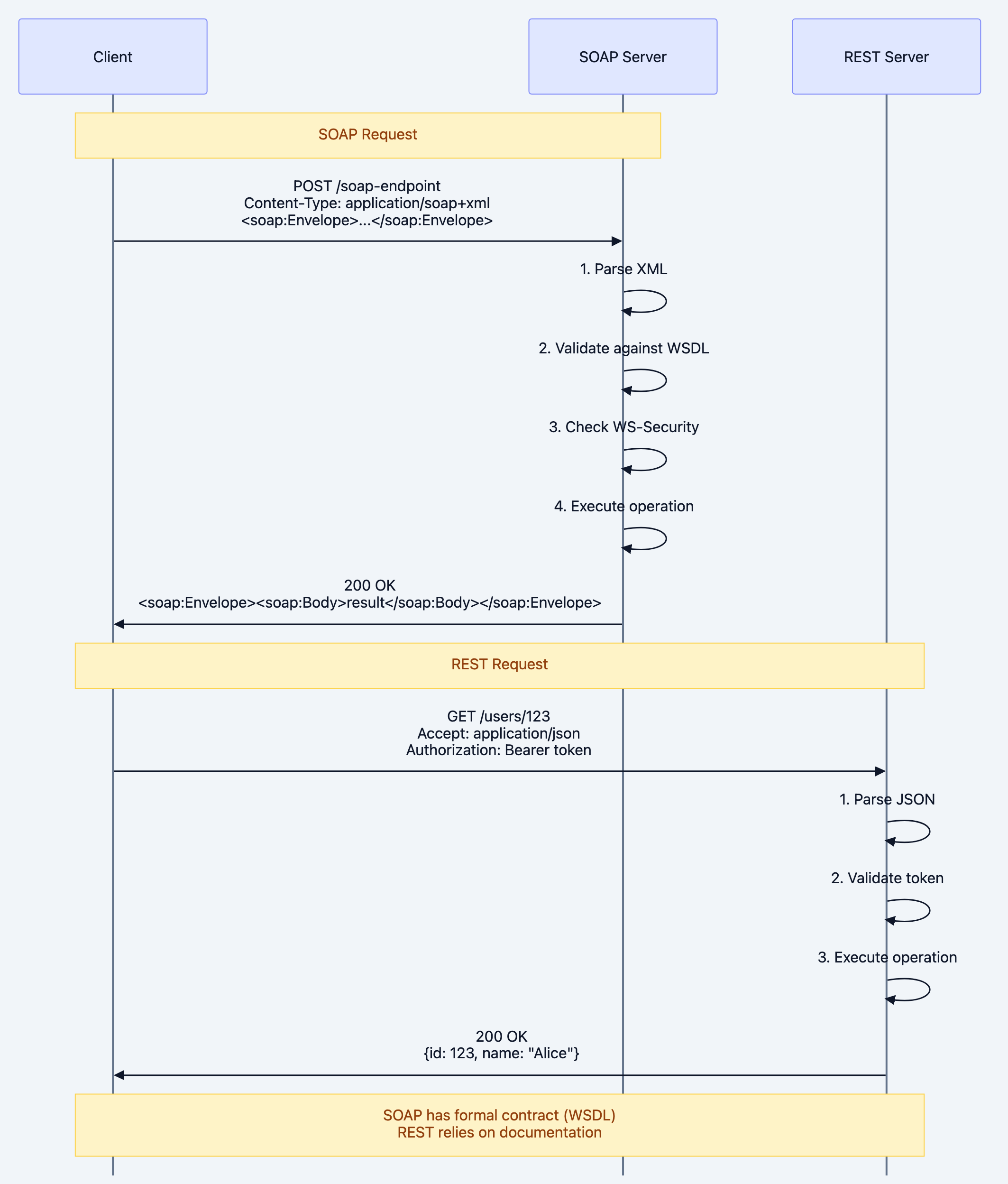

SOAP vs REST: Communication Flow

Note over Client,SOAP Server: SOAP Request

WSDL: The API Contract

WSDL (Web Services Description Language) defines:

Types: Data structures (XML Schema)
Messages: Input/output parameters
Port Types: Operations (like function signatures)
Bindings: Protocol details (SOAP over HTTP)
Services: Endpoint URLs

xml
<definitions xmlns="http://schemas.xmlsoap.org/wsdl/">

  <!-- Data types -->
  <types>
    <xsd:schema>
      <xsd:element name="GetUserRequest">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="userId" type="xsd:int"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="GetUserResponse">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="user" type="tns:User"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:schema>
  </types>

  <!-- Messages -->
  <message name="GetUserRequestMsg">
    <part name="parameters" element="tns:GetUserRequest"/>
  </message>
  <message name="GetUserResponseMsg">
    <part name="parameters" element="tns:GetUserResponse"/>
  </message>

  <!-- Operations -->
  <portType name="UserService">
    <operation name="GetUser">
      <input message="tns:GetUserRequestMsg"/>
      <output message="tns:GetUserResponseMsg"/>
    </operation>
  </portType>

  <!-- Binding (SOAP) -->
  <binding name="UserServiceSOAP" type="tns:UserService">
    <soap:binding transport="http://schemas.xmlsoap.org/soap/http"/>
    <operation name="GetUser">
      <soap:operation soapAction="http://example.com/GetUser"/>
      <input><soap:body use="literal"/></input>
      <output><soap:body use="literal"/></output>
    </operation>
  </binding>

  <!-- Endpoint -->
  <service name="UserService">
    <port name="UserServicePort" binding="tns:UserServiceSOAP">
      <soap:address location="http://example.com/soap/users"/>
    </port>
  </service>

</definitions>

WS-* Standards Ecosystem

Diagram 2

Remote Procedure Call with Contracts

Think of SOAP like calling a function on a remote server with a formal contract:

Local Function Call:

go
user := GetUser(123)  // Type-safe, compiler checks signature

SOAP:

xml
<GetUser>
  <userId>123</userId>
</GetUser>
<!-- WSDL defines exact signature, tools generate code -->

REST:

http
GET /users/123
# No formal contract, rely on documentation

Key Difference:

SOAP: Contract-first (WSDL defines API, code generated)
REST: Code-first (write code, document API)

Deep Technical Dive

1. Code Example: SOAP Server in Go

Using go-soap/soap library:

go
package main

import (
    "encoding/xml"
    "log"
    "net/http"

    "github.com/fiorix/wsdl2go/soap"
)

// User represents a user entity
type User struct {
    XMLName xml.Name `xml:"User"`
    ID      int      `xml:"Id"`
    Name    string   `xml:"Name"`
    Email   string   `xml:"Email"`
}

// GetUserRequest SOAP request
type GetUserRequest struct {
    XMLName xml.Name `xml:"http://example.com/services GetUserRequest"`
    UserID  int      `xml:"UserId"`
}

// GetUserResponse SOAP response
type GetUserResponse struct {
    XMLName xml.Name `xml:"http://example.com/services GetUserResponse"`
    User    User     `xml:"User"`
}

// SOAPEnvelope represents SOAP message structure
type SOAPEnvelope struct {
    XMLName xml.Name `xml:"http://schemas.xmlsoap.org/soap/envelope/ Envelope"`
    Body    SOAPBody `xml:"Body"`
}

type SOAPBody struct {
    XMLName xml.Name `xml:"Body"`
    Content interface{}
}

// UserService implements SOAP operations
type UserService struct {
    users map[int]User
}

func NewUserService() *UserService {
    return &UserService{
        users: map[int]User{
            123: {ID: 123, Name: "Alice Smith", Email: "alice@example.com"},
            456: {ID: 456, Name: "Bob Jones", Email: "bob@example.com"},
        },
    }
}

func (s *UserService) GetUser(req GetUserRequest) GetUserResponse {
    user, exists := s.users[req.UserID]
    if !exists {
        user = User{ID: req.UserID, Name: "Unknown", Email: ""}
    }

    return GetUserResponse{User: user}
}

// SOAP HTTP Handler
func (s *UserService) SOAPHandler(w http.ResponseWriter, r *http.Request) {
    // Parse SOAP envelope
    var envelope SOAPEnvelope
    if err := xml.NewDecoder(r.Body).Decode(&envelope); err != nil {
        http.Error(w, "Invalid SOAP request", http.StatusBadRequest)
        return
    }

    // Extract request (simplified - real impl needs reflection)
    requestXML, _ := xml.Marshal(envelope.Body.Content)
    var getUserReq GetUserRequest
    xml.Unmarshal(requestXML, &getUserReq)

    // Execute operation
    response := s.GetUser(getUserReq)

    // Build SOAP response
    responseEnvelope := SOAPEnvelope{
        Body: SOAPBody{Content: response},
    }

    // Send response
    w.Header().Set("Content-Type", "application/soap+xml; charset=utf-8")
    w.WriteHeader(http.StatusOK)

    xml.NewEncoder(w).Encode(responseEnvelope)
}

// WSDL Handler (serves WSDL contract)
func (s *UserService) WSDLHandler(w http.ResponseWriter, r *http.Request) {
    wsdl := `<?xml version="1.0"?>
<definitions xmlns="http://schemas.xmlsoap.org/wsdl/"
             targetNamespace="http://example.com/services">
  <types>
    <xsd:schema targetNamespace="http://example.com/services">
      <xsd:element name="GetUserRequest">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="UserId" type="xsd:int"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="GetUserResponse">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="User" type="tns:User"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
      <xsd:complexType name="User">
        <xsd:sequence>
          <xsd:element name="Id" type="xsd:int"/>
          <xsd:element name="Name" type="xsd:string"/>
          <xsd:element name="Email" type="xsd:string"/>
        </xsd:sequence>
      </xsd:complexType>
    </xsd:schema>
  </types>

  <message name="GetUserRequestMsg">
    <part name="parameters" element="tns:GetUserRequest"/>
  </message>
  <message name="GetUserResponseMsg">
    <part name="parameters" element="tns:GetUserResponse"/>
  </message>

  <portType name="UserServicePort">
    <operation name="GetUser">
      <input message="tns:GetUserRequestMsg"/>
      <output message="tns:GetUserResponseMsg"/>
    </operation>
  </portType>

  <binding name="UserServiceBinding" type="tns:UserServicePort">
    <soap:binding transport="http://schemas.xmlsoap.org/soap/http"/>
    <operation name="GetUser">
      <soap:operation soapAction="http://example.com/GetUser"/>
      <input><soap:body use="literal"/></input>
      <output><soap:body use="literal"/></output>
    </operation>
  </binding>

  <service name="UserService">
    <port name="UserServicePort" binding="tns:UserServiceBinding">
      <soap:address location="http://localhost:8080/soap"/>
    </port>
  </service>
</definitions>`

    w.Header().Set("Content-Type", "text/xml")
    w.Write([]byte(wsdl))
}

func main() {
    service := NewUserService()

    http.HandleFunc("/soap", service.SOAPHandler)
    http.HandleFunc("/soap?wsdl", service.WSDLHandler)

    log.Println("SOAP server starting on :8080")
    log.Println("WSDL available at http://localhost:8080/soap?wsdl")
    log.Fatal(http.ListenAndServe(":8080", nil))
}

2. Code Example: SOAP Client in Go

go
package main

import (
    "bytes"
    "encoding/xml"
    "fmt"
    "io/ioutil"
    "net/http"
)

// SOAP structures (same as server)
type SOAPEnvelope struct {
    XMLName xml.Name `xml:"http://schemas.xmlsoap.org/soap/envelope/ Envelope"`
    Body    SOAPBody `xml:"Body"`
}

type SOAPBody struct {
    XMLName xml.Name `xml:"Body"`
    Content interface{}
}

type GetUserRequest struct {
    XMLName xml.Name `xml:"http://example.com/services GetUserRequest"`
    UserID  int      `xml:"UserId"`
}

type GetUserResponse struct {
    XMLName xml.Name `xml:"http://example.com/services GetUserResponse"`
    User    User     `xml:"User"`
}

type User struct {
    XMLName xml.Name `xml:"User"`
    ID      int      `xml:"Id"`
    Name    string   `xml:"Name"`
    Email   string   `xml:"Email"`
}

func callSOAPService(userID int) (*User, error) {
    // Build SOAP request
    request := SOAPEnvelope{
        Body: SOAPBody{
            Content: GetUserRequest{UserID: userID},
        },
    }

    // Marshal to XML
    requestXML, err := xml.MarshalIndent(request, "", "  ")
    if err != nil {
        return nil, err
    }

    // Add XML declaration
    soapRequest := []byte(xml.Header + string(requestXML))

    // Send HTTP POST
    resp, err := http.Post(
        "http://localhost:8080/soap",
        "application/soap+xml; charset=utf-8",
        bytes.NewBuffer(soapRequest),
    )
    if err != nil {
        return nil, err
    }
    defer resp.Body.Close()

    // Read response
    body, err := ioutil.ReadAll(resp.Body)
    if err != nil {
        return nil, err
    }

    // Parse SOAP response
    var responseEnvelope struct {
        Body struct {
            GetUserResponse GetUserResponse
        }
    }

    if err := xml.Unmarshal(body, &responseEnvelope); err != nil {
        return nil, err
    }

    return &responseEnvelope.Body.GetUserResponse.User, nil
}

func main() {
    user, err := callSOAPService(123)
    if err != nil {
        fmt.Println("Error:", err)
        return
    }

    fmt.Printf("User: ID=%d, Name=%s, Email=%s\n",
        user.ID, user.Name, user.Email)
}

3. WS-Security Example

Adding authentication and digital signatures:

xml
<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope">
  <soap:Header>
    <wsse:Security xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">

      <!-- Username Token Authentication -->
      <wsse:UsernameToken>
        <wsse:Username>admin</wsse:Username>
        <wsse:Password Type="PasswordDigest">VGhpcyBpcyBhIGhhc2g=</wsse:Password>
        <wsse:Nonce EncodingType="Base64Binary">MTIzNDU2Nzg=</wsse:Nonce>
        <wsu:Created>2026-01-27T10:30:00Z</wsu:Created>
      </wsse:UsernameToken>

      <!-- Digital Signature -->
      <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
        <ds:SignedInfo>
          <ds:CanonicalizationMethod Algorithm="..."/>
          <ds:SignatureMethod Algorithm="..."/>
          <ds:Reference URI="#body">
            <ds:DigestMethod Algorithm="..."/>
            <ds:DigestValue>...</ds:DigestValue>
          </ds:Reference>
        </ds:SignedInfo>
        <ds:SignatureValue>...</ds:SignatureValue>
        <ds:KeyInfo>
          <wsse:SecurityTokenReference>
            <wsse:Reference URI="#X509Token"/>
          </wsse:SecurityTokenReference>
        </ds:KeyInfo>
      </ds:Signature>

      <!-- X.509 Certificate -->
      <wsse:BinarySecurityToken
          EncodingType="Base64Binary"
          ValueType="X509v3"
          wsu:Id="X509Token">
        MIICxjCCAa4...
      </wsse:BinarySecurityToken>

    </wsse:Security>
  </soap:Header>

  <soap:Body wsu:Id="body">
    <GetUserRequest>
      <UserId>123</UserId>
    </GetUserRequest>
  </soap:Body>
</soap:Envelope>

Security Features:

Authentication: Username/password with digest (not plaintext)
Integrity: Digital signature ensures message not tampered
Non-repudiation: Signer can't deny sending message
Encryption: Can encrypt entire body or specific elements

4. SOAP Faults (Error Handling)

xml
<soap:Envelope>
  <soap:Body>
    <soap:Fault>
      <soap:Code>
        <soap:Value>soap:Sender</soap:Value>
        <soap:Subcode>
          <soap:Value>UserNotFound</soap:Value>
        </soap:Subcode>
      </soap:Code>
      <soap:Reason>
        <soap:Text xml:lang="en">User with ID 999 not found</soap:Text>
      </soap:Reason>
      <soap:Detail>
        <ErrorDetails>
          <ErrorCode>404</ErrorCode>
          <Timestamp>2026-01-27T10:30:00Z</Timestamp>
        </ErrorDetails>
      </soap:Detail>
    </soap:Fault>
  </soap:Body>
</soap:Envelope>

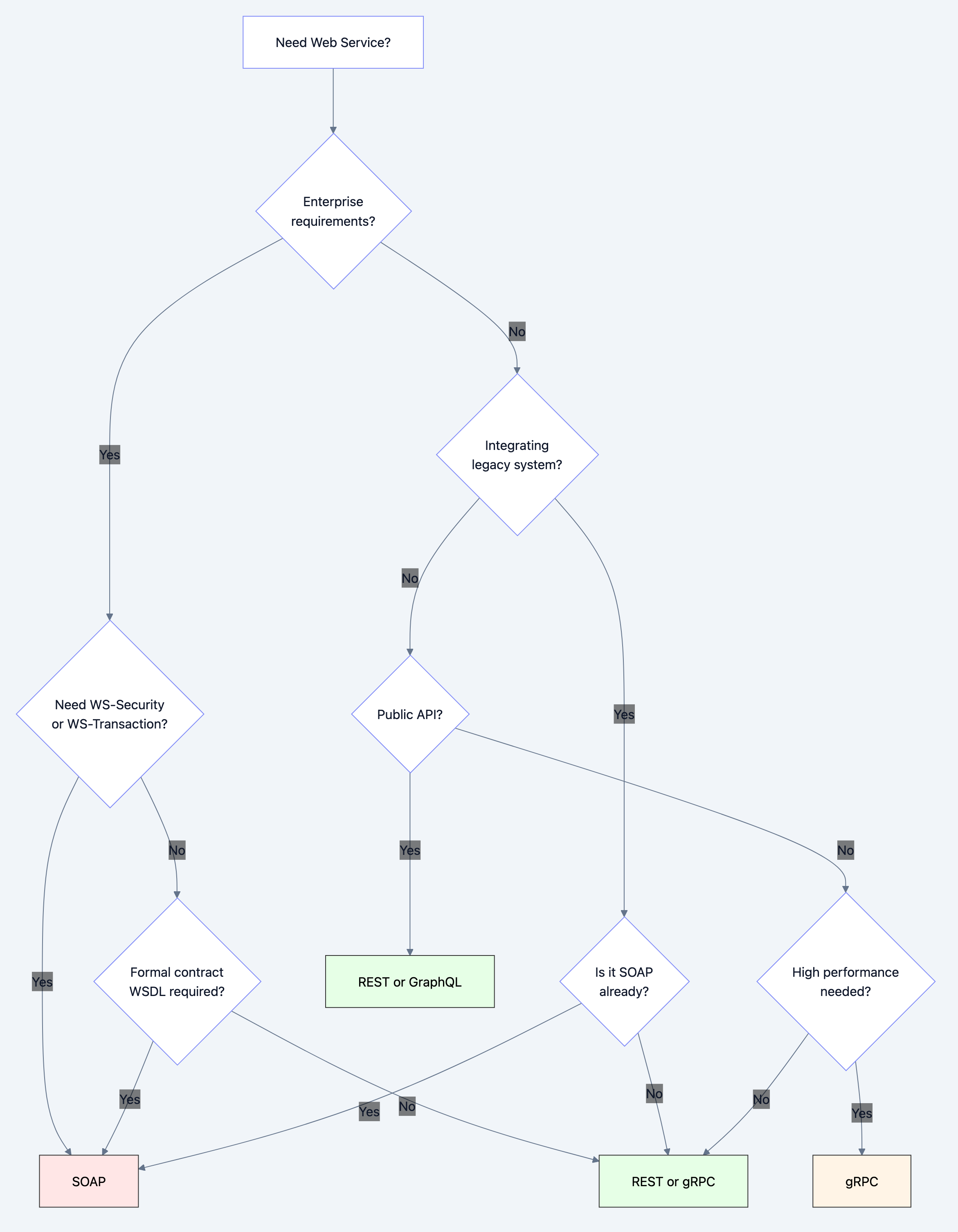

When to Use: Decision Framework

Diagram 3

Use SOAP When:

Enterprise security: WS-Security, message encryption, digital signatures
ACID transactions: WS-AtomicTransaction for distributed transactions
Formal contracts: WSDL-first development required
Legacy integration: Existing SAP, Oracle, IBM systems
Compliance: HIPAA, PCI-DSS, SOX require audit trails
Financial services: Banking, insurance, stock trading

Don't Use SOAP For:

Public APIs: Too complex for third-party developers
Mobile apps: XML payloads too large, battery drain
Real-time apps: Too much overhead for low latency
Modern microservices: gRPC is faster, REST is simpler

Common Pitfalls

Pitfall 1: Not Validating Against WSDL

The Mistake: Sending invalid XML that doesn't match WSDL schema.

The Fix: Use WSDL tools to generate client code automatically.

Pitfall 2: Forgetting Namespaces

The Mistake:

xml
<GetUserRequest>  <!-- Missing namespace! -->
  <UserId>123</UserId>
</GetUserRequest>

The Fix:

xml
<tns:GetUserRequest xmlns:tns="http://example.com/services">
  <tns:UserId>123</tns:UserId>
</tns:GetUserRequest>

Pitfall 3: Not Handling SOAP Faults

The Mistake: Only checking HTTP status (always 200, even for errors).

The Fix: Parse SOAP Fault from body when present.

Performance Implications

SOAP vs REST Payload Size:

REST:

json
{"id": 123, "name": "Alice", "email": "alice@example.com"}
// 59 bytes

SOAP:

xml
<soap:Envelope>
  <soap:Body>
    <GetUserResponse>
      <User>
        <Id>123</Id>
        <Name>Alice</Name>
        <Email>alice@example.com</Email>
      </User>
    </GetUserResponse>
  </soap:Body>
</soap:Envelope>
// 250+ bytes (4x larger!)

Optimization:

Use MTOM (Message Transmission Optimization Mechanism) for binary data
Enable gzip compression
Cache WSDL parsing

Real-World Use Cases

Use Case 1: Banking Wire Transfers

xml
<soap:Envelope>
  <soap:Header>
    <wsse:Security><!-- WS-Security --></wsse:Security>
    <wsat:CoordinationContext><!-- Transaction --></wsat:CoordinationContext>
  </soap:Header>
  <soap:Body>
    <WireTransfer>
      <From>123456789</From>
      <To>987654321</To>
      <Amount currency="USD">10000.00</Amount>
    </WireTransfer>
  </soap:Body>
</soap:Envelope>

Requirements met:

ACID transaction (rollback if fails)
Encryption (WS-Security)
Non-repudiation (digital signature)
Audit trail (message logging)

Use Case 2: Healthcare HL7 Integration

SOAP used for patient record exchange between hospitals (HIPAA-compliant).

Use Case 3: Government Tax Filing

IRS uses SOAP for e-filing tax returns (formal contract, security).

Interview Questions

Junior Level

Q: What is SOAP? A: SOAP (Simple Object Access Protocol) is an XML-based protocol for exchanging structured information in web services. Unlike REST, it has formal contracts (WSDL) and built-in security standards.

Q: What's the difference between SOAP and REST? A: SOAP is a protocol with formal contracts (WSDL), uses XML only, and has built-in security/transactions. REST is an architectural style, uses JSON/XML, and relies on HTTP methods.

Mid Level

Q: Explain WSDL and its purpose. A: WSDL (Web Services Description Language) is an XML document that describes a SOAP service's operations, input/output types, and endpoint locations. It's like an API contract that allows automatic code generation.

Q: What is WS-Security and why is it important? A: WS-Security is a SOAP extension for authentication, encryption, and digital signatures. It's important for enterprise systems requiring message-level security (not just transport-level HTTPS).

Senior Level

Q: When would you choose SOAP over REST or gRPC? A: SOAP when you need: (1) WS-* standards (Security, Transactions), (2) Formal contracts required by compliance, (3) Legacy enterprise integration (SAP, Oracle), (4) ACID transactions across services.

Q: How would you integrate a modern Go microservice with a legacy SOAP system? A: (1) Use WSDL to generate Go client code, (2) Create adapter service that exposes REST/gRPC and calls SOAP internally, (3) Handle XML marshaling/unmarshaling, (4) Implement retry logic for unreliable SOAP services, (5) Cache WSDL parsing.

Key Takeaways

SOAP is a protocol, REST is a style - SOAP is more rigid, REST is flexible
WSDL provides formal contracts - machine-readable API definition
WS- standards for enterprise features* - Security, Transactions, Reliable Messaging
XML-only, more verbose - 3-5x larger payloads than JSON
Not dead, powers critical infrastructure - banking, healthcare, government
Best for enterprise integration - legacy systems, compliance requirements
Poor for public APIs - too complex, large payloads
ACID transactions with WS-AtomicTransaction - distributed two-phase commit
Message-level security with WS-Security - encryption, signing, authentication
Use REST for new projects, SOAP for legacy - unless enterprise requirements demand SOAP

Further Learning

Practice: Integrate with a public SOAP service (weather, currency)
Tools: Learn SoapUI for testing SOAP services
Read: WS-* specifications (WS-Security, WS-ReliableMessaging)
Enterprise: Study SAP, Oracle SOAP APIs
Migration: Learn REST wrapper patterns for SOAP services

SOAP may not be trendy, but understanding it is essential for working with enterprise systems that process trillions of dollars annually. Master SOAP, and you'll be invaluable for legacy integration and enterprise projects.
